The 6196 model is available in a wide range of sizes, capacities and materials to fit virtually any process-fluid application. With more than 36 selections and multiple design options, we've got your application covered for abrasives, corrosive substances and a wide range of capacities.
- ASME (ANSI) B73.1-compliance
- Magnetic drain plug
- Extra-large capacity epoxy-coated oil sump
- Registered alignment between frame and adapter
- Standard and low-flow models available
- Heavy-duty power frames
- Fully open impellers with rear-adjustment capability
- Wide variety of mechanical seal options
- Dynamically balanced impellers
- CF8M (SS316), CF8 (SS304), CF3M (SS316L), CD4MCU, CN7M (ALLOY-20), DUPLEX (GRADE 5A, 6A), HAST-B & C materials available
- Max. temperature: 260°C (500°F)
- Three stuffing-box options available
- Multiple port sizes available
- Multiple seal-flush plans available
- Steel and composite baseplates available
- Certified testing per Hydraulic Institute and Certified testing per Hydraulic Institute and
Standard Features
- Standard investment casting open impeller. Design for chemical process.
- Ideal for corrosive & abrasive liquid
- Adjustment of clearance is easy when wear & tear takes place
- Top discharge, self-venting. Back pull-out design.
- Optional centerline mounting support & Teflon gasket
- Back pull out design
- Design for various seal arrangements. Small bore for packing available.
- Choice of packed box or mechanical seal. Any type inside or outside-single, double, unbalance &
- balanced mechanical seal.
- Almost any seal will fit without modifications of pump.
- Heavy duty shaft design for minimum deflection.
- Designed for toughest services.
- Maximum 0.05 mm deflection at stuffing box face at maximum load.
- Standard 150 lb. FF flanges with 300 lb. flanges available.
- Increased oil capacity for better heat transfer.
- Heavy duty design to reduce the loads on shaft.
- Standard labyrinth oil seal to protect oil against contamination and extend the bearing & shaft life.
- Easy to maintain impeller clearance.
- Standard K1 sight glass for easy view.
- To monitor oil level in oil chambers
Optional High Temperature Services

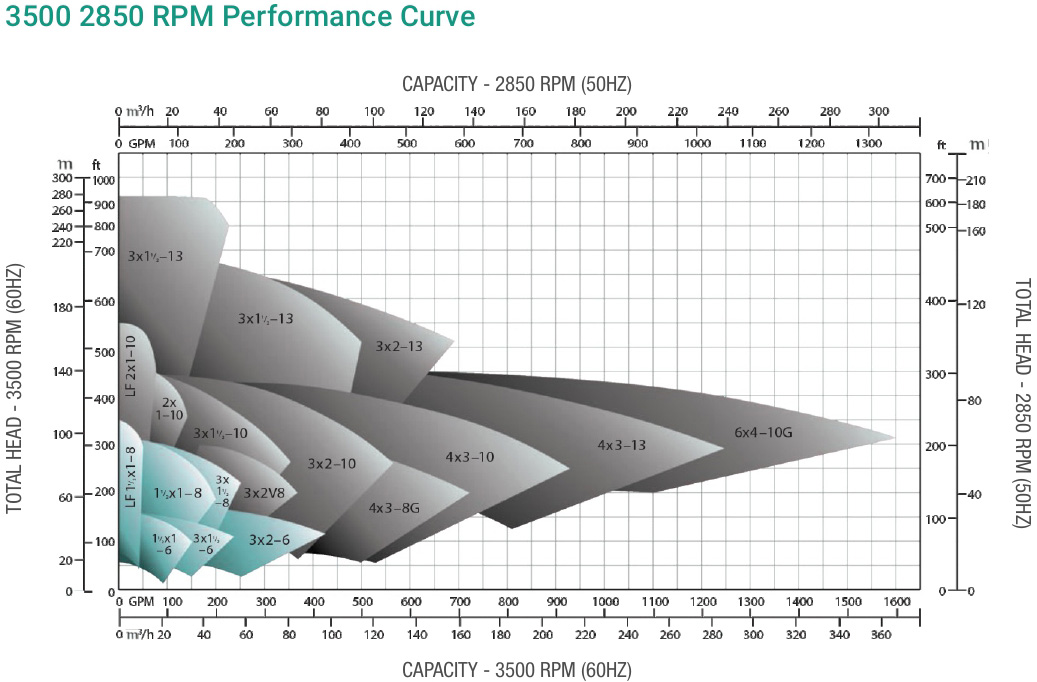

Hydraulic Coverage
Component Inter Change ability JAP-MT/LT
Component Interchangeability Chart For JAP-XT
Seal Chambers & Sealing Flexibility
JEE Pumps quality seal chambers are engineered to provide optimum seal environment for heat dissipation, solids, entrapped air and vapor. Oversized seal chambers, as well as provide better circulation of liquid to and from the seal faces, preventing failure of the shaft seal. A variety of flush plans are available for additional lubrication and cooling of the seal faces.
Seal To Fil Any Application
Cartridge Seals, Component Seals & Conventional Packing
With JEE PUMPS broad selection of seals, you can accommodate most any fluid and temperature for demanding chemical, petroleum, pharmaceutical and general industry applications. Our engineers can recommend the best seal to maximize your application and system life-including cartridge or component, single or double, inside or outside, balance or unbalanced seal or conventional packing.
Single Cartridge Seal
Double Cartridge Seal
Double Gas Barrier Seal
Single Inside Seal
Conventional Double Seal
Jacketed Casing
Economical Jacket provides practical method of heating or cooling the casing. Excellent heat transfer characteristics.
JACKETED SEAL CHAMBER
Maintains proper temperature control of sealing environment. Ideal for maintaining temperature for services such as molten Suphur and polymerizing liquids.
BEARING FRAME FINNED COOLER
Directly cools oil for lower bearing operating temperature. Requires minimum cooling water. Corrosion resistant construction. Recommended for temperatures over 350°F
High And Low Temperature Capability
The JEE 6196 Series ANSI Pumps are designed to be directly interchangeable with pumps from other manufacturers, adhering to ANSI standards. This ensures seamless integration into existing systems without the need for modifications, making them a versatile and reliable choice for various industrial applications.
